RAKSHAK

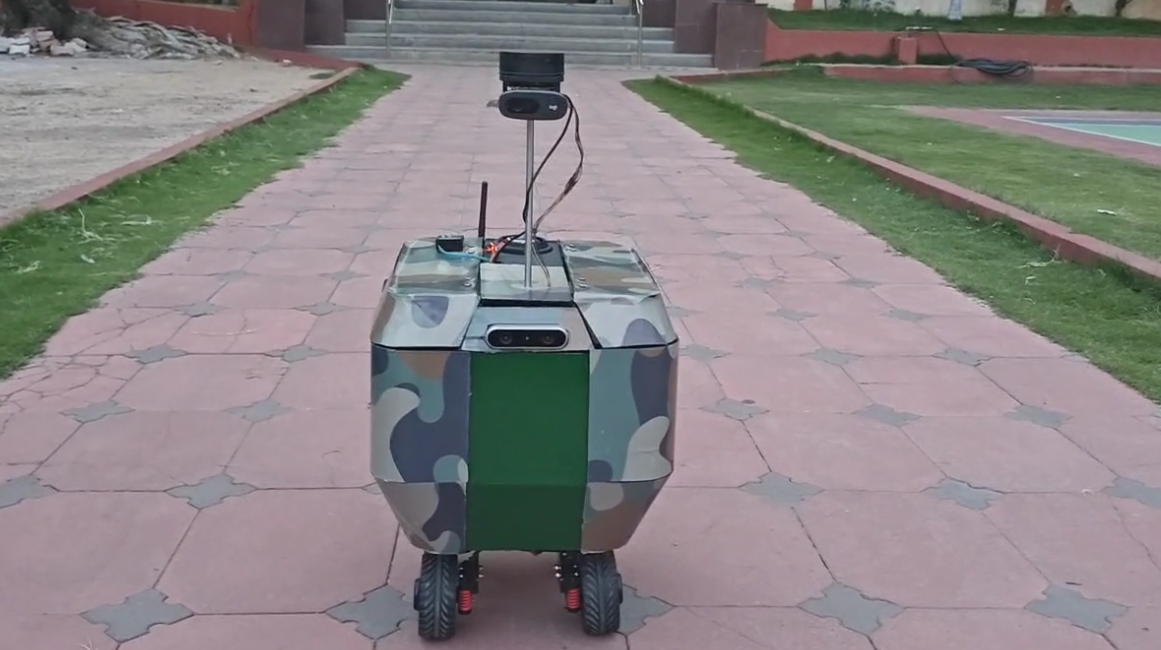

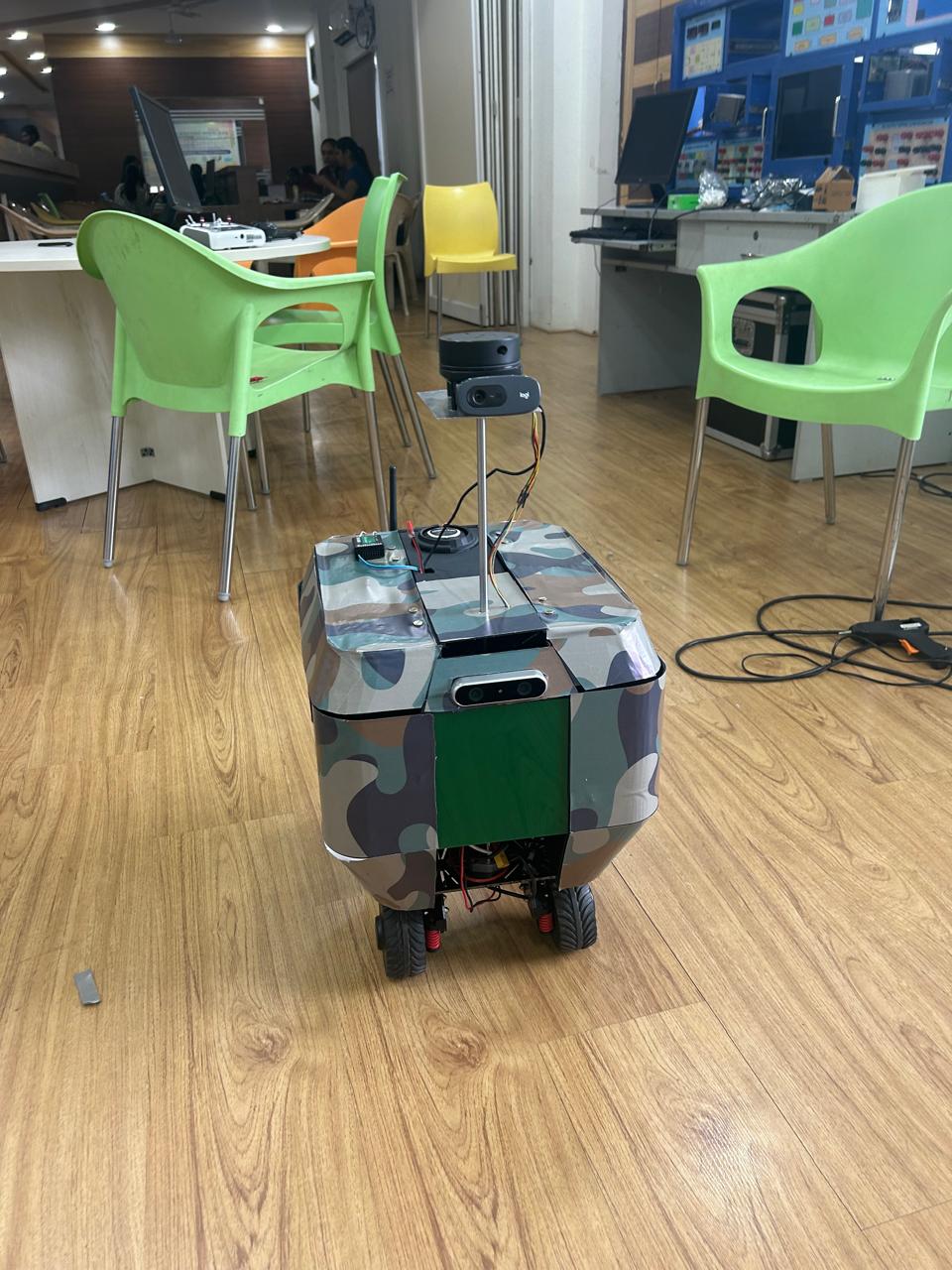

Autonomous Surveillance Rover

RAKSHAK

AI-Powered Intruder Detection and Real-Time Surveillance

Capabilities

Advanced Capabilities

RAKSHAK combines cutting-edge technologies to deliver autonomous surveillance and security.

Lidar Navigation

Advanced LIDAR sensors for precise mapping and navigation in complex environments.

GPS Path Tracking

Accurate GPS tracking for predefined patrol routes and position monitoring.

Intruder Detection

AI-powered computer vision for real-time intruder detection and identification.

Real-time Alerts

Instant notifications and alerts when suspicious activities are detected.

Remote Control

Secure remote operation capabilities for manual control when needed.

Obstacle Avoidance

Autonomous obstacle detection and avoidance for uninterrupted operation.

Specifications

Technical Specifications

Core components and hardware specifications of the RAKSHAK rover.

Computing

Processing and control systems

Main ComputerNVIDIA Jetson Nano
Flight ControllerPixhawk
Memory2GB LPDDR4
Storage128GB eMMC

Sensors

Navigation and detection systems

Primary LIDARRPLIDAR A1
Secondary LIDARYDLIDAR OS30A
GPSGPS M8N
CameraLogitech C270 720p Webcam

Locomotion

Movement and power systems

MotorsWaveshare DDSM 115
Motor ControllerWaveshare DDSM HAT-A
GimbalBrushless 2-Axis
BatteryLiPo 5200mAh 14.8V
Runtime~3 hours

Communication

Connectivity and data transmission

Wi-Fi802.11ac Dual-Band
Bluetooth5.0 BLE
Radio915MHz Long Range
RC2.4GHz Long Range
RangeUp to 1km
Our Team

Meet Our Team

The talented student contributors behind the RAKSHAK project.

Shoaib SSM
Shoaib SSM
CSE-A

24BD1A051K

Tanishq Jain
Tanishq Jain
CSE - A

24BD1A051T

Shaik Mohammed Omar
Shaik Mohammed Omar
CSE - A

24BD1A051J

Tarang Harsola
Tarang Harsola
CSE - A

24BD1A051U

Anirudha KSM
Anirudha KSM
CSE - A

24BD1A0503

Nikunj Jayesh
Nikunj Jayesh
CSE - E

24BD1A0598

FAQ

Frequently Asked Questions

Common questions about the RAKSHAK project and its capabilities.
